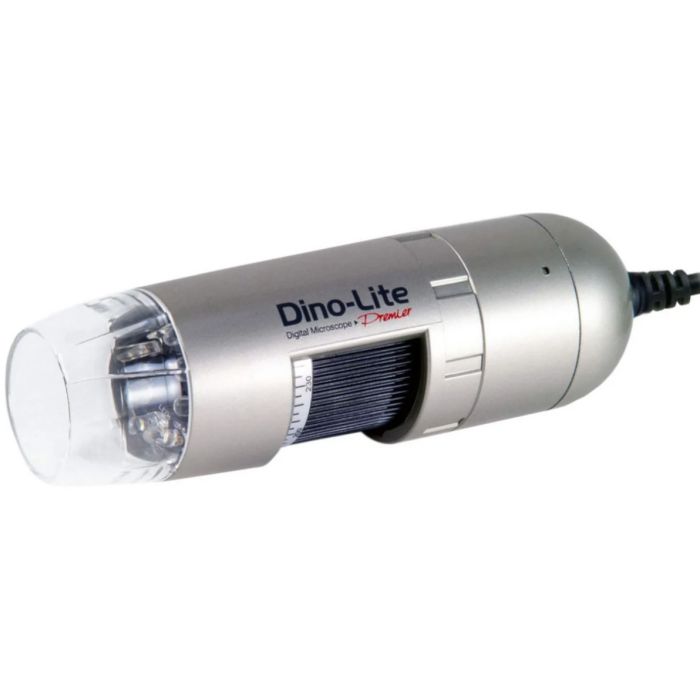

Dino-Lite AM3111 Basic Handheld Digital Microscope
Low Stock
Description / Dino-Lite AM3111 Basic Handheld Digital Microscope
The Dino-Lite AM3111 Basic Handheld Digital Microscope enables the user to capture pictures, videos and time-lapsed videos quickly.
Easy to install and operate
Using a simple control dial, the magnification and focus can be adjusted on virtually any part. With a 30 fps, it can generate clear and steady images.
The microscope is easy to install and operate on Windows and Mac computers. A DinoCapture software is included with each microscope, enabling you to ‘capture’ either a photograph, video or time-lapsed video with a simple click.
Specifications
- Supports Windows OS (10, 8, 7, Vista, XP) and Mac OS (10.4 or later)
- Capture pictures, videos and time-lapsed videos
- Resolution: 640 x 480 pixels (VGA)
- Magnification: from 20x ~ 50x for a broad view to over 200x for detailed close-ups, easily controlled with the focus knob
- Frame rate: up to 60 fps (30 fps at VGA, YUV and 60 fps at VGA, MJPEG)
- Built-in white-light LED illumination
- Interface: USB 2.0
- Operating System: Windows 10/11 and mac OS 10.14 or later
- Illumination: White Light, 8 LEDs
- Cable: Type-A cable
| Optical Data Table (in mm) | ||||
| Magnification | Working Distance | Field of View (x) | Field of View (y) | Depth of Field |
| 20x | 64 | 20 | 15 | 14 |
| 30x | 34 | 13 | 10 | 7 |
| 40x | 20 | 10 | 7 | 4 |
| 50x | 13 | 8 | 6 | 3 |
| 200x | 5 | 2 | 1 | 0.3 |
**The Working Distance is the distance between the tip of the Dino-Lite's cap and the object being observed.
Foster curiousity about nature!
Keep the microscope handy for exploring the outdoors. Encourage students to keep their eyes peeled for any interesting specimens, and use the microscope to examine these specimens.
In full, this product contains:
- 1x Dino-Lite AM3111 Basic Handheld Digital Microscope
Additional Information:
- Dimensions: 103mm H x 32mm D
- Weight: 94g approx
